Precision Controls PF30-P1-000 Dosing Pump | 31.68 GPD @ 150 PSI

Precision Controls PF30-P1-000 Dosing Pump | 31.68 GPD @ 150 PSI

$335.00 USD
$499.99 USD $335.00 USD
Sale Sold out
Plug Type

The Precision Controls PF30-P1-000 is our flagship solenoid metering pump, trusted in thousands of installations for its reliability and superior pressure handling. While most standard dosing pumps cap out at 80 PSI, the PF30 delivers a consistent 31.68 Gallons Per Day (GPD) at a powerful 150 PSI.

Product Identification:

  • Model Number: PF30-P1-000
  • Item Number: PF30V1

Engineered for Performance This "Precision Flow" series pump is built for continuous duty in demanding environments. With an IP65-rated housing and a heavy-duty PVC pump head, it provides the durability required for industrial, municipal, and residential water treatment.

Key Applications:

  • High-Pressure Injection: Perfect for pumping into pressurized water lines up to 150 PSI.
  • Water Treatment: The go-to choice for chlorination, pH adjustment, and scale control.

Technical Specifications:

  • Max Flow: 31.68 GPD
  • Max Pressure: 150 PSI (High-Pressure Rated)
  • Voltage: AC100-240V (110V/230V Compatible)
  • Materials: PVC Pump Head / Long-Life Diaphragm
  • Protection: IP65 Waterproof & Dustproof
  • Warranty: 12-Month Manufacturer Warranty

What's Included:

  • PF30 metering pump
  • Injection / back check valve
  • Suction foot valve with strainer
  • Ceramic tube weight
  • Black UV-resistant discharge tubing: 1/4 in ID × 3/8 in OD

Tubing length and quantity: [merchant confirmation required].

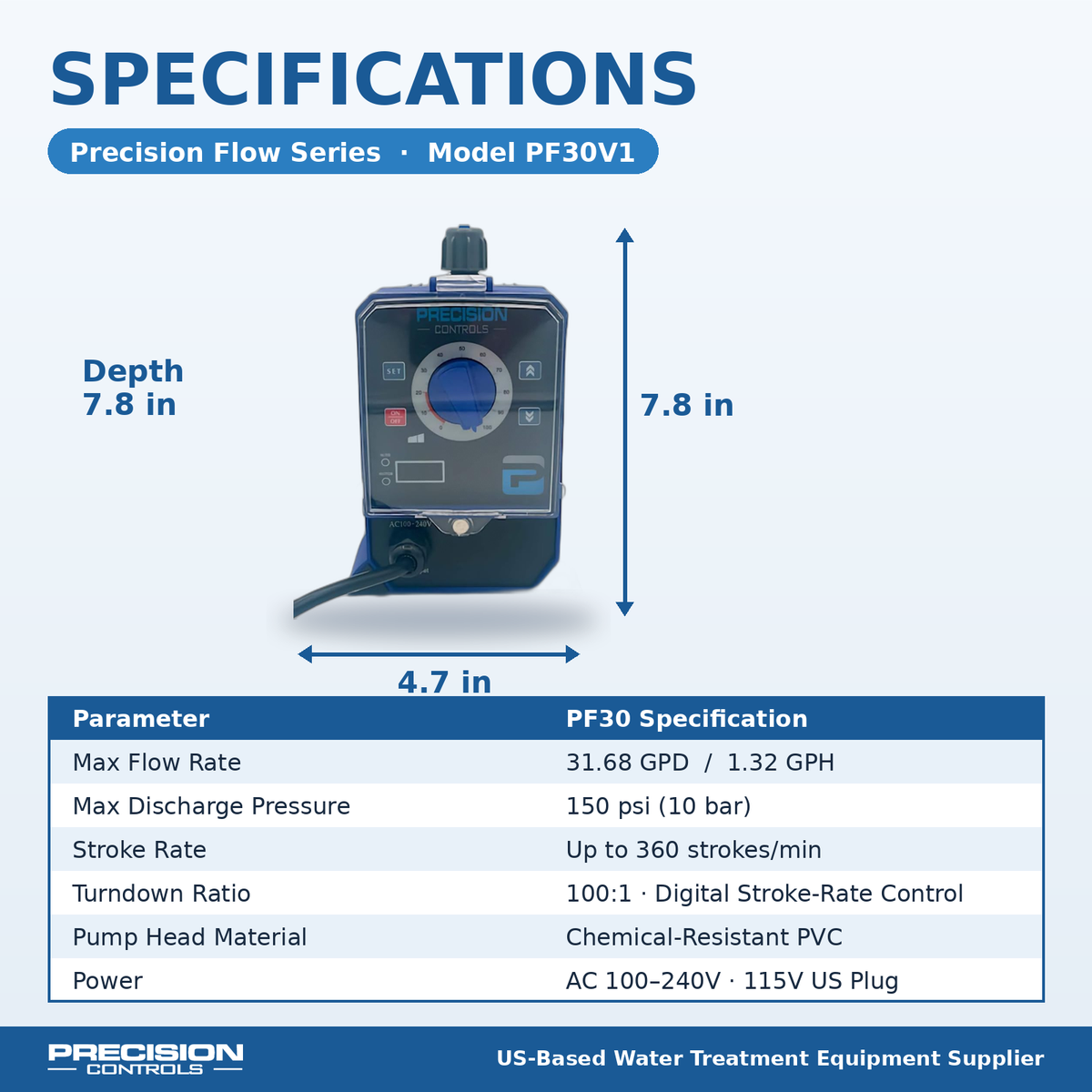

External Dimensions: 7.8 in H × 4.7 in W × 7.8 in D, as shown in the PF30V1 specification image.

115V vs. 230V: Select for Your Installation

Selection Installation supply Plug information
115V 115V supply The PF30V1 specification image lists a 115V US plug.
230V 230V supply The 230V product image shows a grounded 230V plug end for matching 230V receptacles.

Match your selection to the installation's supply voltage and receptacle, rather than choosing by country alone. The listed pump input range is AC100–240V.

[Merchant confirmation required: confirm the plug supplied with each selectable option and whether voltage selection changes only the cord/plug or also the pump configuration.]

If you are unsure which option matches your installation, contact us before ordering.

📄 Download the Precision Flow Series Installation & Operation Manual (PDF)
